Coloured Multimode OM3 Patch Cable - LSZH Duplex
Photo may vary from actual product
FOLZH10-001M-LCLC-GN: Green, LC-LC, 1m
FOLZH10-001M-LCLC-GN: Green, LC-LC, 1m
FOLZH10-020M-SCLC-GN: Green, SC-LC, 20m

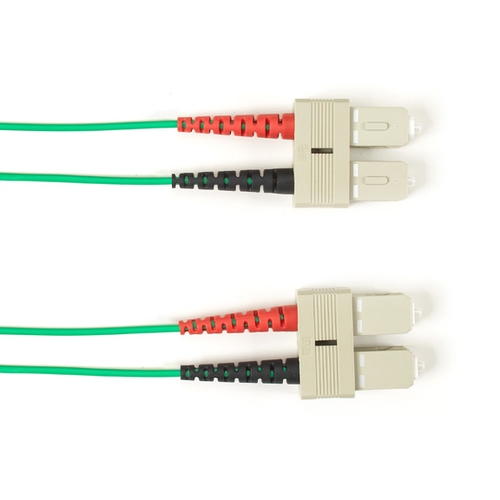

FOLZH10-001M-SCSC-GN: Green, SC-SC, 1m
FOLZH10-003M-STLC-GN: Green, ST-LC, 3m

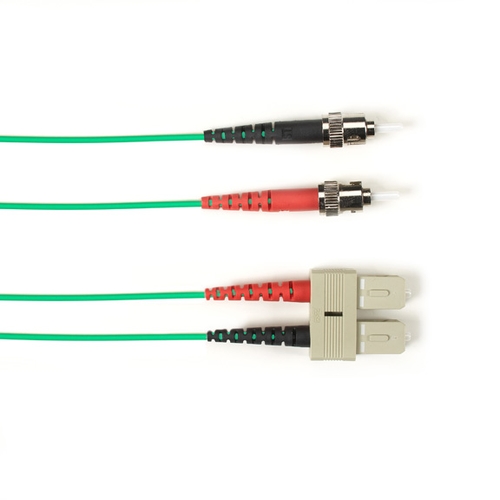

FOLZH10-001M-STSC-GN: Green, ST-SC, 1m

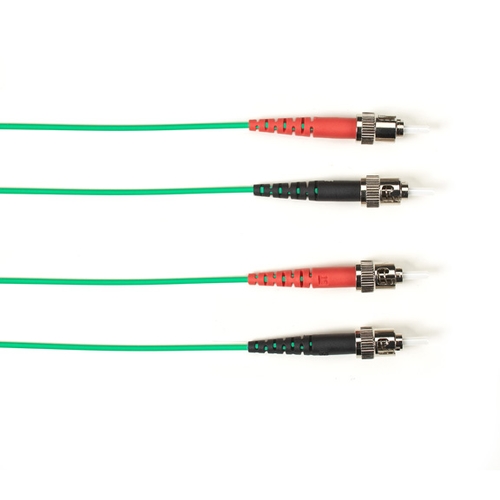

FOLZH10-001M-STST-GN: Green, ST-ST, 1m


Coloured Multimode OM3 Patch Cable - LSZH Duplex


Colour code network applications with Low-Smoke Zero Halogen OM3 fibre cable in 12 standard colours.


  • Colour code fibre networks for different applications, departments, and security levels.
  • Take your network to 10-GbE.
  • Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion.
  • Well suited for using in aircraft, ships, and construction areas.
  • Get the connectors you want: ST, SC, and LC in 6 different combinations.
  • Choose from 12 different colours using the filter function top left on the ordering information.
  • Select from 9 lengths ranging from 1 to 30 meters.
  • Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
  • Full compatibility with a broad range of laser-based and legacy protocols and applications.
  • OM1, OM2, and OM4 multimode plus single-mode cables are also available.
  • Warranty: 25 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
Select Colour:
LC-LC

2m
  Coloured Multimode OM3 Patch Cable - LSZH Duplex
Coloured Multimode OM3 Patch Cable - LSZH Duplex
  FOLZH10-002M-LCLC-BL

3m
  Coloured Multimode OM3 Patch Cable - LSZH Duplex
Coloured Multimode OM3 Patch Cable - LSZH Duplex
  FOLZH10-003M-LCLC-BL
ST-ST

1m
  Coloured Multimode OM3 Patch Cable - LSZH Duplex
Coloured Multimode OM3 Patch Cable - LSZH Duplex
  FOLZH10-001M-STST-BL

10m
  Coloured Multimode OM3 Patch Cable - LSZH Duplex
Coloured Multimode OM3 Patch Cable - LSZH Duplex
  FOLZH10-010M-STST-BL
ST-LC

3m
  Coloured Multimode OM3 Patch Cable - LSZH Duplex
Coloured Multimode OM3 Patch Cable - LSZH Duplex
  FOLZH10-003M-STLC-BL
NOTE:These cables are made to order and not returnable. Leadtime is around 28 working days.

Please contact our Sales department for individual length and MT-RJ terminations.

Jacket –
Low Smoke Zero Halogen (LSZH)

Diameter –
Core: OM3 laser-optimized 50-µm;
Cladding: 125-µm

Performance
Attenuation –
=2.3 dB/km at 850 nm;
=0.6 dB/km at 1300 nm

Bandwidth –
Intermediate performance EMB: 2000 MHz/km at 850 nm;
Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm

Data Rate (Optimised) –
1 Gbps over 1000 m at 850 nm;
10 Gbps over 300 m at 1300 nm

Operating Temperature – -60 to 85° C

Listings –
ISO/IEC 11801: Type OM3 fibre;
IEC 60793-2-10; Type A1a.2 fibre;
TIA 492AAAC

TAA compliant — YES
