LCD Console Tray, Dual Slide, Ultra Short Depth, 17", 4K

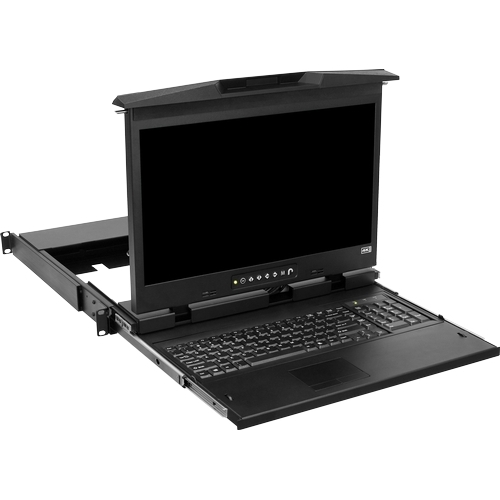

Photo may vary from actual product


LCD Console Tray, Dual Slide, Ultra Short Depth, 17", 4K


17" 4K dual-slide, ultra short depth LCD rack console supporting 3840x2160@60Hz video


  • Modular design supports a variety of integrated KVM, mouse and keyboard design options
  • 4K display supports up to 3840x2160@60Hz native resolution with 16.7M colors (8-bit)
  • Built-in dual stereo speakers
  • LCD and keyboard slide independently. Use as a Rack Keyboard Console or as a Rack Monitor
  • Ultra short depth design allows you to mount the console in only 480mm* of space
  • Mounts into only 1U of standard 19" rackmount space
  • Slim design with a molded front handle for easy access
  • LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
  • Full-sized keyboard with trackball or touchpad option

  Product       Code   Unit price   Quantity
LCD Console Tray

17"
  LCD Console Tray, Dual Slide, Ultra Short Depth, 17", 4K
LCD Console Tray, Dual Slide, Ultra Short Depth, 17", 4K
  KLUDS174K
On request

Click here to access our configuration tool and quote request for your fully customizable LCD Console Tray.

LCD Console Trays Tailored to Your Specific Requirements
Black Box offers a broad portfolio of high-quality LCD Console Trays that are custom-made to your particular requirements. Select from multiple options with varying display sizes, video resolutions, and mounting depths with single or dual slides. Choose a keyboard design out of seven options and your preference for a trackball or touchpad. Finally, decide on the integrated KVM Switch option or select “No KVM” if you would like to connect the tray to your existing KVM switch.

About KLUDS174K
Featuring a 17″ 4K LED-backlit LCD display and notepad keyboard with touchpad or trackball in a compact 1U ultra short depth design (480mm / 18.9″), KLUDS174K is a leading Rack Console KVM tray for data centers & other IT environments. The LCD display and the keyboard slide on independent rails to allow the monitor to stay up while the keyboard is stored. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack server console tray.

Request a Quote
Use our online KVM configuration form to easily request your custom KVM Console Tray. You will receive a quote within a short period of time.
Click here to select your individual LCD Console Tray now


Actions
Datasheets
LCD Console Tray Dual Ultra Short Depth
