CCTV Power-Through Balun

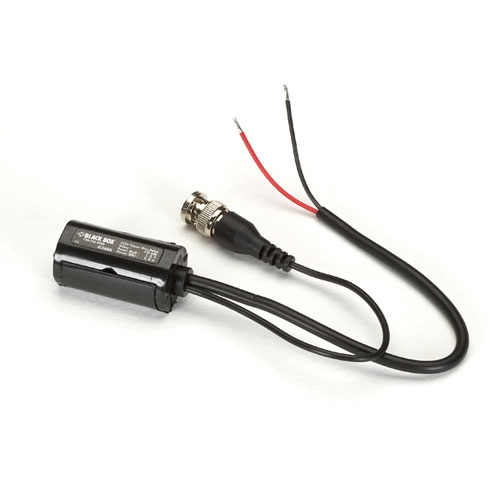

This balun has RJ-45 connectors and transmits video plus power over a single 4-pair CAT3 or CAT5 cable. It supports baseband, NTSC, PAL, or SECAM video at up to 762 m (2500 ft.), plus it supports 24-VAC power at up to 157 m (518 ft.) when using 5 VA.

The balun works with the CCTV Passive Hubs (IC562A–IC563A).

Distance (Maximum) —
Color video: CAT3: 365.7 m (1200 ft.), CAT5: 670.5 m (2200 ft);
Black-and-white video: CAT3: 457.2 m (1500 ft.), CAT5: 762 m (2500 ft.);
Power: 24 VAC via (3) twisted pairs (based on a 10% voltage drop at the camera): 5 VA: 157.8 m 518 ft.), 10 VA: 78.9 m (259 ft.), 20 VA: 39.6 (130 ft.), 30 VA: 26.2 m (86 ft.)
Connectors — (1) RJ-45, (1) BNC M, (1) 2-wire 18 AWG lead
Size — 4.7L x 2.54 diameter cm (1.87"L x 1" diameter) plus 20.3cm (8”) video lead and 25.4cm (10”) power lead
