Store home > Networking > Office Networking > PoE > Extenders > VDSL2 PoE Ethernet Extender Kit, PSE
VDSL2 PoE Ethernet Extender Kit, PSE

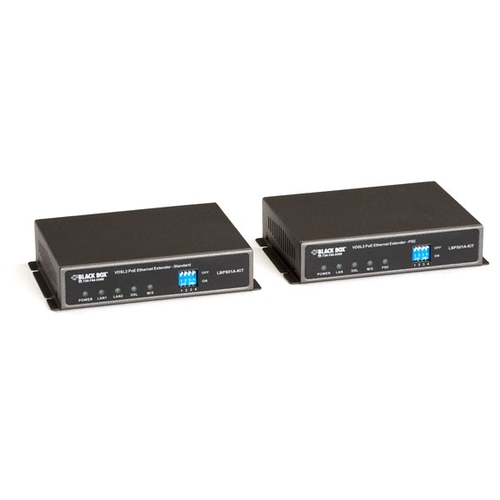

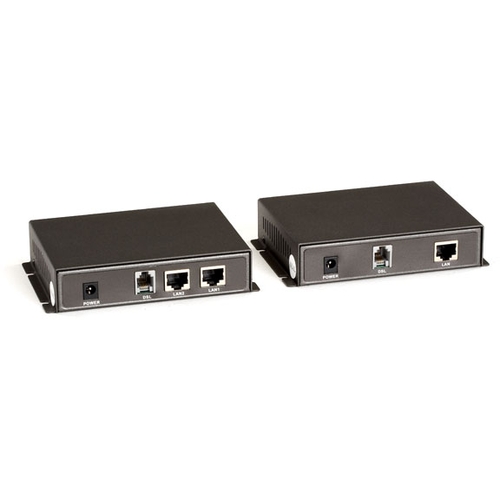

Photo may vary from actual product
LBPS01A-KIT: Kit, 2 wires, 60Mbps, 48 VDC


VDSL2 PoE Ethernet Extender Kit, PSE


Integrate this Ethernet extender into your PoE network.


  • Kit includes two extenders—one of which acts as PoE power source equipment (PSE), the other is a standard extender.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 150 m.
  • Supports distances of up to 1200 m at 28/0.3 Mbps.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches for master/slave configuration.
  • Low latency for video and voice applications.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
Kit
2 wires
60Mbps

48 VDC
  VDSL2 PoE Ethernet Extender Kit, PSE
VDSL2 PoE Ethernet Extender Kit, PSE
  LBPS01A-KIT
Sign in

Add to shopping basket

This high-speed Ethernet extender enables you to power PoE devices without the need for an additional power outlet.

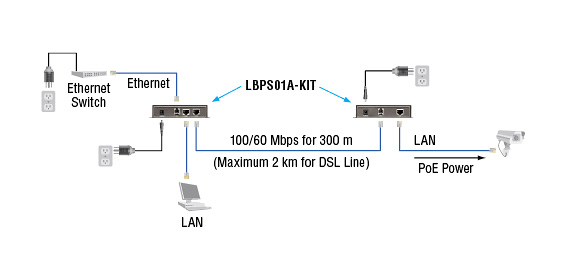

The VDSL2 PoE Ethernet Extender Kit features two extenders, one of which is a PoE PSE device, which supplies power to a PoE PD device such as an IP camera or wireless access point. This enables you to seamlessly integrate the extenders into a PoE infrastructure and eliminates the need to supply a spare power outlet for distant network devices.

Installation is easy—just connect the extenders then configure them using simple DIP switches.


Actions
Black Box Explains
Guide to
Manuals
VDSL2 PoE Ethernet Extender Kit, PSE Manual
Download lbps01a-kit.pdf
