Pro Switching System SM260 Series, A/B Switching Cards

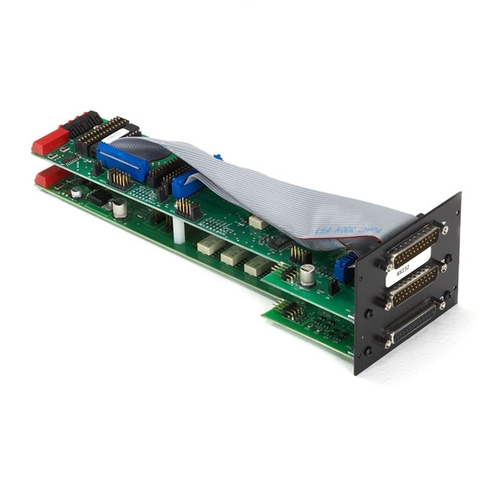

Photo may vary from actual product


Pro Switching System SM260 Series, A/B Switching Cards


Switch between two RS232/RS530 or CAT 6 connections


  • RS232 and RS530 A/B Switching cards:
  • Occupies three slots.
  • LED's monitor TxD, RxD, RTS, DCD on A and B ports.
  • 8-position DIP switch, used to set the card’s address.
  • Latching switch card will maintain current position if power is lost.
  • Supports pass through of all RS232 or RS530 signals.
  • CAT6 A/B Switching Card
  • Occupies one slot
  • Speeds up to 10 GbE
  • Latching switch card will maintain current position if power is lost
  • Supports 8 pin RJ45
  • 8-position DIP switch, used to set the card’s address
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
RS-232
DB25

Variation: -
  Pro Switching System SM260 Series, A/B Switching Cards
Pro Switching System SM260 Series, A/B Switching Cards
  SM265A
CAT6
RJ-45

Variation: -
  Pro Switching System SM260 Series, A/B Switching Cards
Pro Switching System SM260 Series, A/B Switching Cards
  SM269A

Accessories

  Product     Code   Unit price   Quantity

  Pro Switching Gang Switch Chassis - 2U 18 ports - 18 Slots
Pro Switching Gang Switch Chassis - 2U 18 ports
  SM260A
  Power Adapter Card for Pro Switching System 2U (for external power supply) - Dual Power Inputs
Power Adapter Card for Pro Switching System 2U (for external power supply)
  SM261A-CARD
Power Supply
  Power Supply, 120-240VAC, External
Power Supply, 120-240VAC, External
  SM961A-PS
  Pro Switching System, 2U, Controller Card - RS232/Ethernet (SNMP)
Pro Switching System, 2U, Controller Card
  SM262A
  Pro Switching System, 2U, Controller Card - RS232 only
Pro Switching System, 2U, Controller Card
  SM263A
  Pro Switching System, 2U, Controller Card - SNMP expansion
Pro Switching System, 2U, Controller Card
  SM264A

Pick a card, any card.
A/B Switch Cards are available for RS-232, RS-530 and CAT6 connections. Use the system for both new and legacy applications. You can add cards for fast CAT6 10-GbE networking while keeping connections for older RS-232 connections.

Secure and fallback switching.
For fail-safe operation, all the cards (except those noted) use proprietary latching or micro-mirror relay switching technology—which means data can continue to pass through even if the power has been cut off. Because the cards perform Layer 1 switching, the system operates independently of data rates, protocols, formats, or signal levels.

Each chassis also has a keyed switch so you can enable/disable manual switching from the front-panel toggle switches.
