Guide to Keyboard, Video and Audio connectors

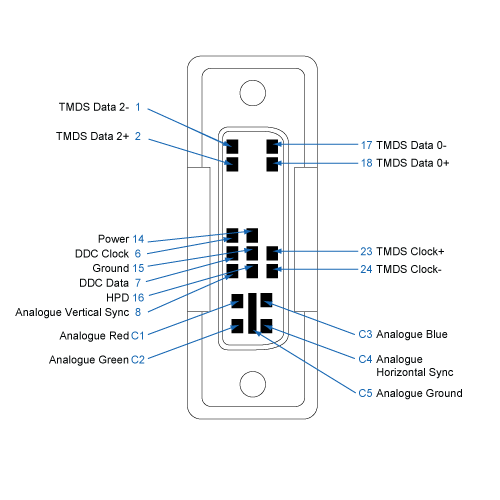

DVI

DVI-I Single Link

DVI-I Single Link Connector

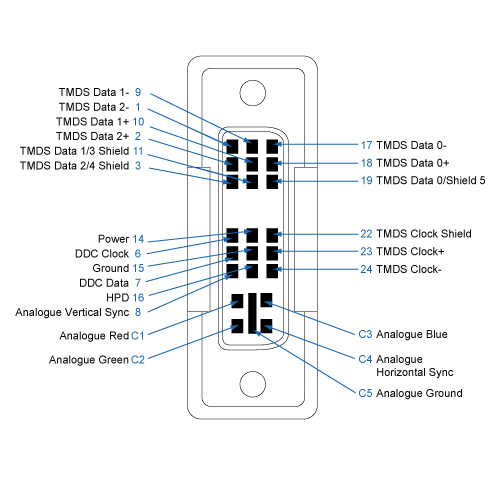

See pinning diagram

DVI-I Dual Link

DVI-I Dual Link Connector

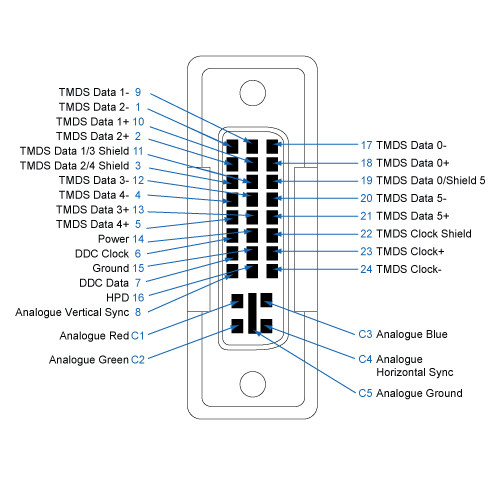

See pinning diagram

DVI-D Single Link

DVI-D Single Link Connector

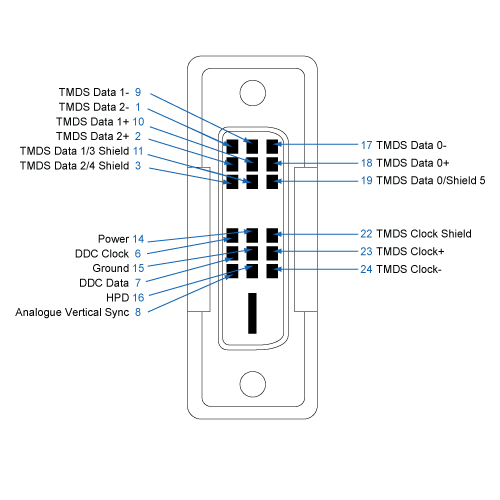

See pinning diagram

DVI-D Dual Link

DVI-D Dual Link Connector

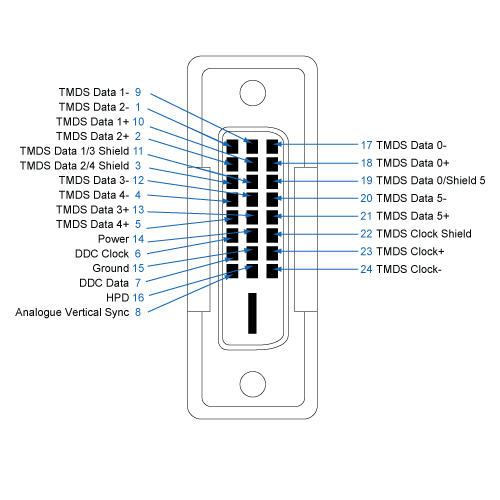

See pinning diagram

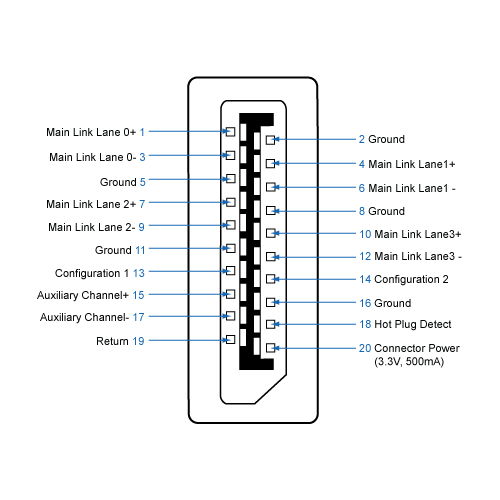

DisplayPort

Mini DisplayPort

Mini DisplayPort Connector

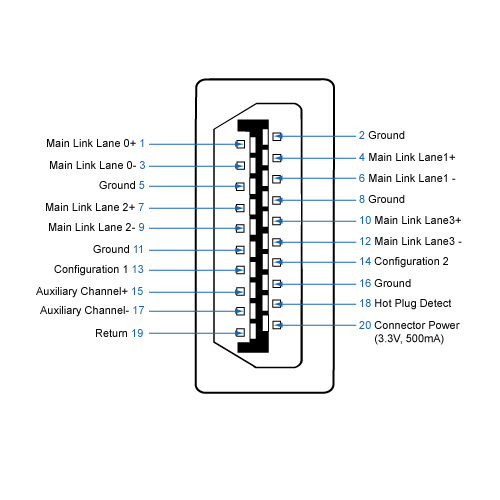

See pinning diagram

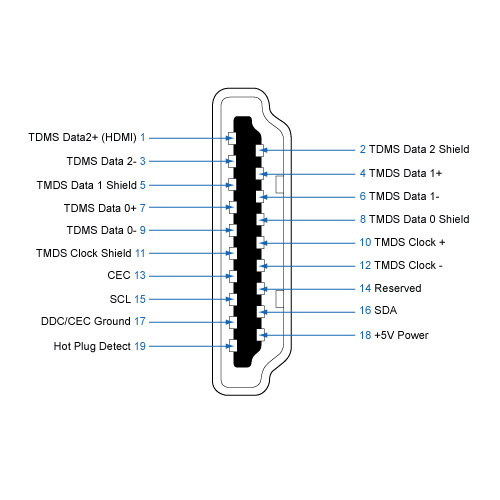

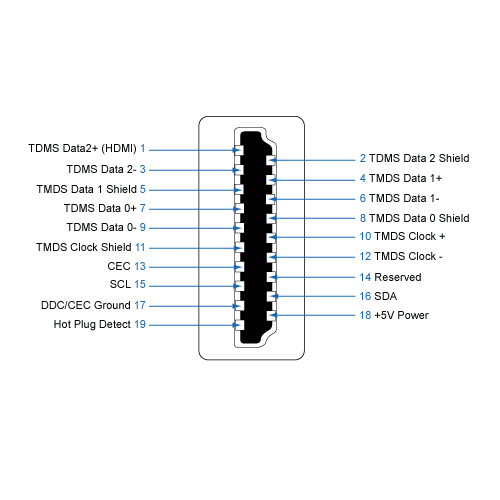

HDMI

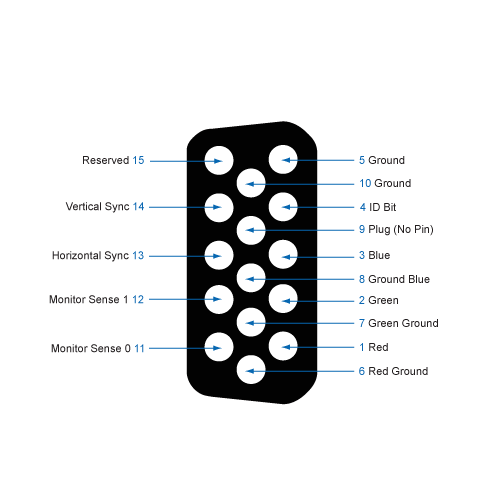

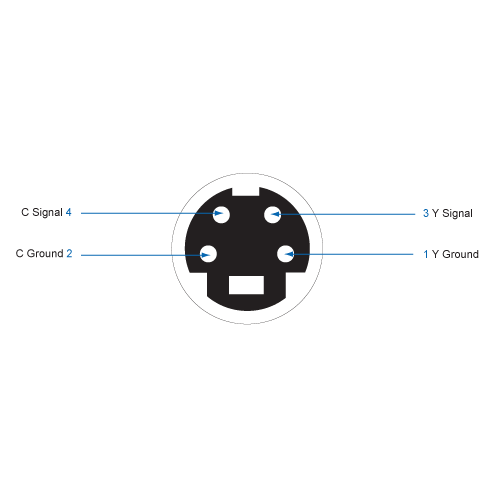

Miscellaneous

TOSLINK

TOSLINK Interface

RCA

RCA Interface

BNC

BNC

F-Type Coax

F-Type Coax

NOTE: Images are not to scale.

Learn more:
Fibre Connectors
